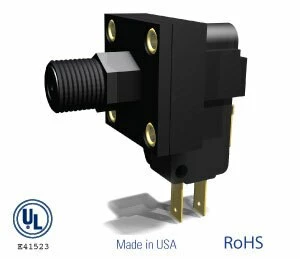

Absolute FGDPSF103 Low Pressure Monitor And Switch

FGDPSF103 Low Pressure Monitor and Switch 15 PSI with Form C Output

The PSF103 is a pressure monitor and sensor with a built-in alarm contact. The pressure sensor comes preset to monitor for a drop in pressure below 15 psi but is adjustable from 3″ H20 to 60 psi.

FEATURES / BENEFITS

• Controllable hysteresis (deadband)
• Field adjustable pressure set point, from 3″ H2O to 60 psi
• Snap action basic switch, up to 25A*, 125/250 VAC
• Dependable long life (10+ million cycles)

Pressure Alarm with Switch Specifications

Mechanical

• Standard Tolerance: ±20% (Tighter tolerances available)
• SPDT (single pull / double throw) normally open or normally closed
• Switching Medium: Air; compatible fluids
• Mechanical Life: More than 10 million cycles
• Pressure Set Point: Option 906
• Operating Temperature: +40°F to +150°F (standard) | -46°F to +205°F

Physical

• Case Material: Polycarbonate
• Pressure Port/Cover: Option 06
• Diaphragm Material: Polyurethane
• Contact Points: Silver
• Electrical Connections: Terminals – .187″x.020″ tab-type for use with quick disconnects (ref. AMP #2-520182-2 or equivalent) .250″ available
• Mounting: Terminals – .187″x.020″ tab-type for use with quick disconnects (ref. AMP #2-520182-2 or equivalent) .250″ available
• Weight: Less than 20 grams

Electrical

• 125/250 VAC : 15A

Pressure Alarm with Switch Includes

• 1 x Pressure Switch

Pressure Alarm with Switch Support and Downloads

• Information Sheet
