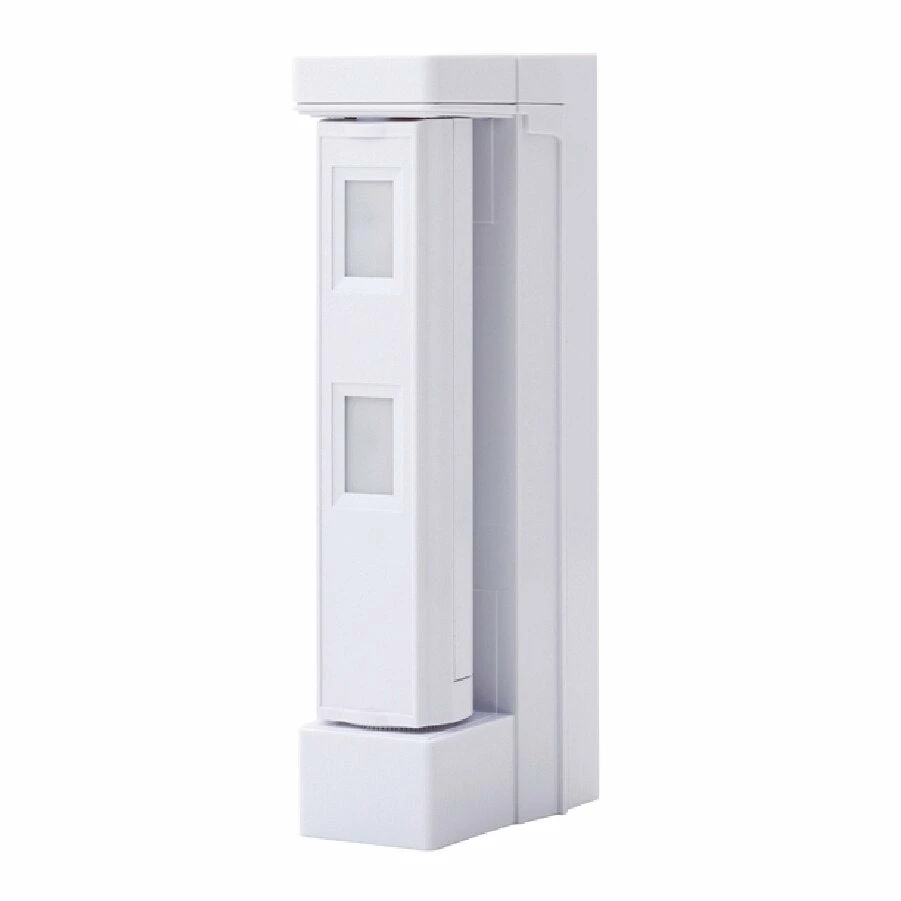

Absolute Optex FTN-RRIX Outdoor Dual PIR Detector

FTN-RRIX Optex Wireless Outdoor Dual PIR Motion Detector for GE Interlogix

The FTN-RRIX from Optex is a wireless outdoor PIR detector for use with GE Interlogix wireless alarm systems. It uses SMDA logic technology (Super Multi Dimension Analysis) to prevent missed detections and two double-layered detection patterns to eliminate the possibility of false alarms particularly those associated with temperature changes, light reflections and small animals. Alarm and trouble outputs can be set to either Normal Close or Normal Open using a solid state switch.

Optex FTN-RRIX Outdoor Dual PIR Motion Detector Specifications

• Dual passive infrared detection
• SMDA logic (Super Multi Dimension Analysis) helps prevent false alarms and missed detections
• Works with new or existing GE Interlogix wireless alarm system
• Alarm output: N.C./N.O. Selectable-Solid State Switch 10 V DC 0.01 A (max.)
• Trouble output: N.C./N.O. Selectable-Solid State Switch 10 V DC 0.01 A (max.)
• Tamper protection
• Built-in wireless transmitter
• CR123A battery included (lasts 5 years)
• ETL listed to UL standards in Canada and the US
• IP55 Certified
• Operating temperature: – 4 to + 140°F (-20 to +60°C)

Optex FTN-RRIX Outdoor Dual PIR Motion Detector Support

• FitLink Series Manual
• FitLink Series Quick Start Guide
