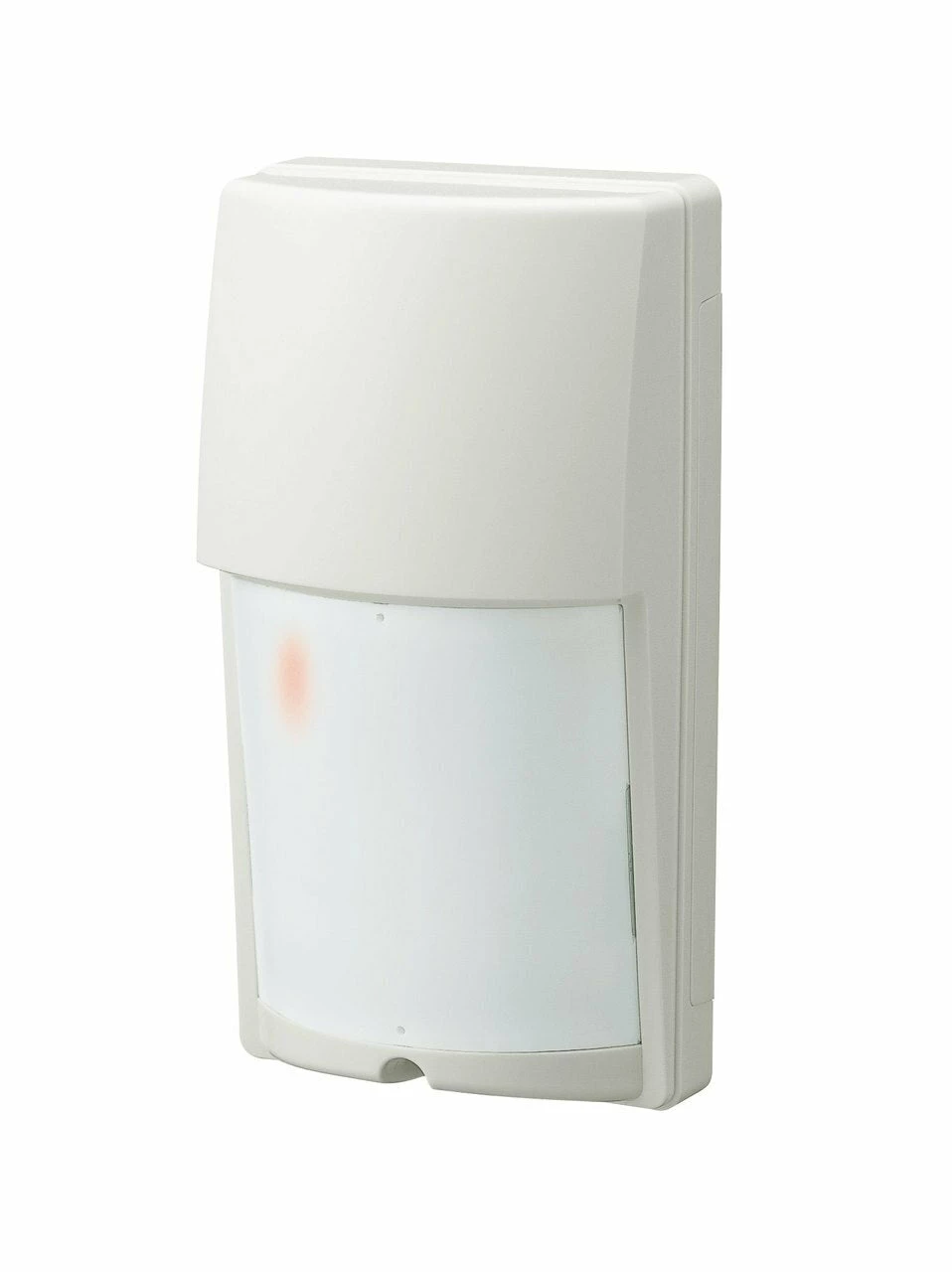

Absolute Optex LX402 PIR Motion Detector With Pet Immune Option

Optex LX402 40 x 50 Outdoor PIR Motion Detector with Pet Immune Option

OptexFTs LX-402 is a hard wired outdoor rated PIR (passive infrared) motion detector thatFTs compatible with virtually all alarm, CCTV and security systems. It offers several features designed for better performance and false alarm immunity. It comes in low, medium and high sensitivity options so you can adjust the motion detector sensor to your needs. It also comes with a day and night mode so the sensor is only triggered when it gets dark.

Optex LX402 40 x 50 Outdoor PIR Motion Detector with Pet Immune Option Specifications

• Double conductive shielding eliminates false alarms from light sources
• User selectable standard multi-pattern coverage or pet alley coverage to avoid triggers from smaller animals
• High / Medium / Low sensitivity setting
• Selectable pulse counter
• Adjustable Day / Night mode. Can be set to only trigger when dark.
• Form C (NO and NC relay output)
• Tamper switch opens when cover removed
• Rated IP54 for outdoor use
• Operating voltage: 10.8 to 13.2 VDC
• Operating temperature range: -20°C to +50°C (-4°F to +122°F)

Optex LX402 40 x 50 Outdoor PIR Motion Detector with Pet Immune Option Support

• Optext LX402 Spec Sheet
