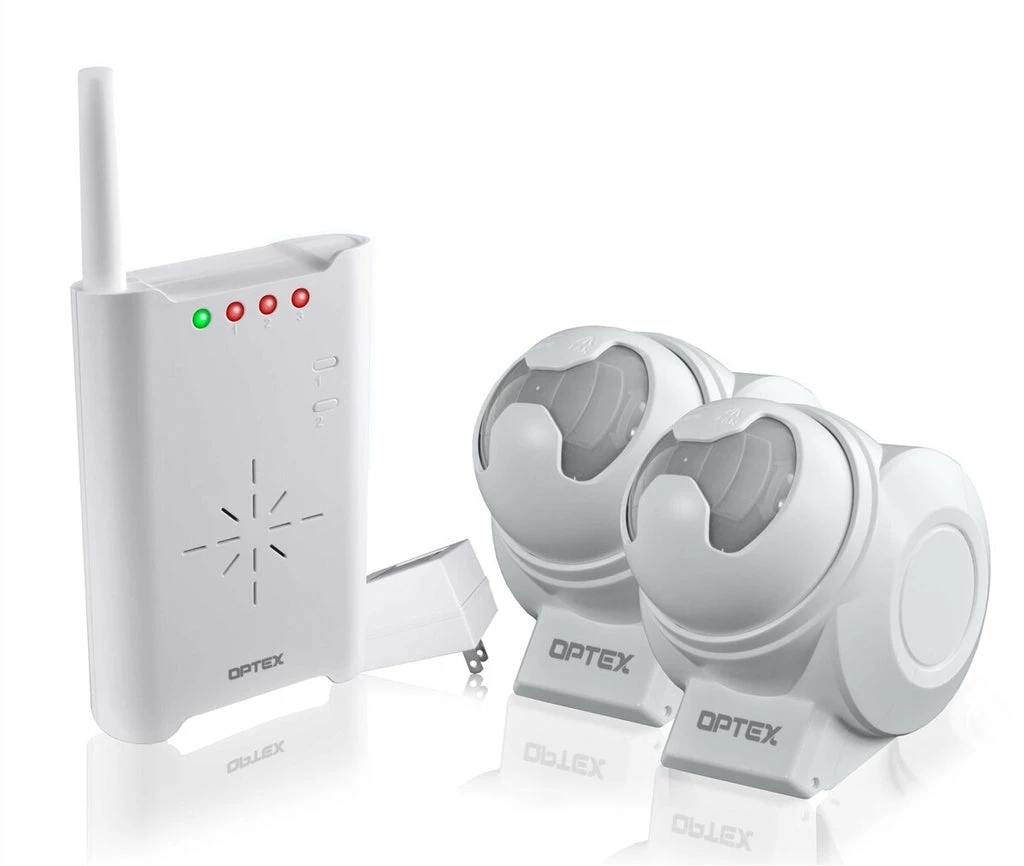

Optex Wireless 2000 System Driveway Alarm with Extra PIR Motion Sensor
We are offering the Optex Wireless 2000 driveway alarm system with an extra sensor as a kit! Perfect for monitoring multiple locations such as your driveway and front entrance. Also great for multiple outdoor locations around your property. This special offer includes one complete Optex RCTD20U and one Optex TD-20U Wireless Sensor.
Wireless signal is sent up to 2000 feet* clear line of sight to the included receiver. Actual distance will vary based on obstacles and terrain.
Optex RCTD20UBUNDLE Specifications
Optex Chime Receiver RC20U
- Adjustable volume levels 0~80dB/5 (Continuous zone: max.)
- Relay output: 50V AC 1A max or 24V DC 1A max
- DC 9V (exclusive AC adapter)
- Chime tone: 3 tone & 1 alarm (optional)
- Radio Frequency: 418MHz
- Operating Temperature: 15°F – 104°F (-10°C – +40°C)
- Maximum Transmitters: compatible with up to 9 transmitters
Optex Driveway Sensor and Transmitter TD20U
- Passive infrared detection
- Operating Temperature: 15°F~120°F (-10°C~+50°C)
- IP54 Weather Resistance
- Battery life: Approx. 2yrs
- Detection pattern: 50ft (15m) long range or 17ft (5m) fan pattern
- 90° vertically & ±5° horizontally or ±5° vertically & 90° horizontally
Optex RCTD20UBUNDLE Includes
- 1 x RCTD20U Receiver
- 2 x TD20U Transmitter/Sensors
Limited Time Offer – Optex Wireless 2000 System with Extra Sensor
Optex TD-20U Sensor Specifications
- Detection Method: Passive infrared
- Detection Range: 50ft (15m) long range or 17ft (5m) fan pattern
- Detection Angle: 90° vertically & ±5° horizontally or ±5° vertically & 90° horizontally
- Power Source: 9V alkaline battery (not included)
- Battery Life: Approx. 2yrs [250/day at 70°F (20°C)]
- Visible Indicator: Red LED
- Transmission Frequency: 418MHz
- Transmission Range: 2000ft (line of sight)
- Operating Temperature: 15°F~120°F (-20°C~+50°C)
- Water Resistance: IP54
- Suitable for use: Outdoor/Indoor
- Weight: 6.3oz (180g)
- Accessories: Mounting screw × 2
Optex RC-20U Chime Receiver Specifications
- Power Source: 9VDC Power Adapter (included)
- Chime Tones: 3 Tones and one “Latching” alarm
- Volume: Adjustable: 0~80dB/5 levels (Continuous zone: max.)
- Relay Rating: 50V AC 1A max or 24V DC 1A max.
- Output Timer: Selectable: off/1/5/30/60sec/utility output mode
- Radio Frequency: 418MHz
- Operating Temperature: 15°F~204°F (-20°C~+40°C)
- Maximum Number of Transmitters: 15°F~204°F (-20°C~+40°C)
Limited Time Offer – Optex Wireless 2000 System with Extra Sensor
- 1 – Optex RC-20U Chime Receiver
- 2 – Optex TD-20U Wireless Sensors
- 1 – 9VDC Adapter
- 1 – Set of Mounting Hardware
Limited Time Offer – Optex Wireless 2000 System with Extra Sensor
- Optex Wireless 2000 Manual
- Optex TD-20U Manual
- Optex RC-20U Manual
