Absolute Optex WNX-40DS Wireless PIR Motion Sensor, DSC Complatible

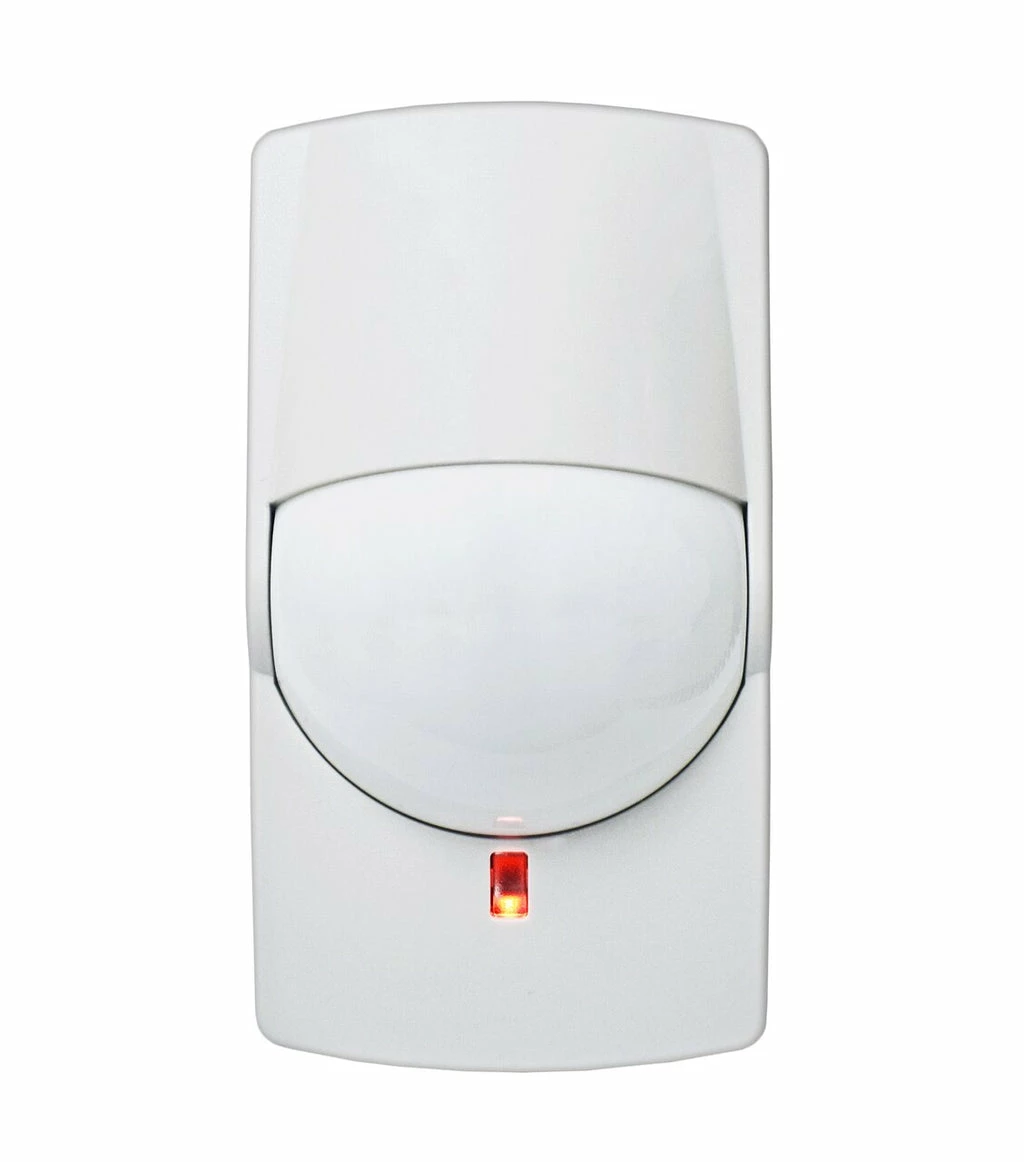

Optex WNX-40DS Wireless PIR Motion Sensor, DSC

The Optex WNX-40DS is a wireless passive infrared sensor with a high-performance rating against false alarms. Nuisance alarms triggered by things like spot temperature, blinds, curtains and small animals need not be a worry with this sensorFTs sophisticated detection technology.

Using Quad Zone Logic technology, the sensor is capable of distinguishing between humans and other sources of infrared heat. The spherical lens of the device, allows it to maximize the performance of this feature.

The WNX-40DS is compatible with DSC 433MHz wireless systems.

Optex WNX-40DS Wireless PIR Motion Sensor, DSC Specifications

• 40ft x 40ft coverage
• Passive Infrared technology
• 78 detection zones
• Form C tamper switch (micro switch)
• LED indicator, switchable On/Off
• Battery life up to 3 years (720 events per day) to 7 years (240 events per day)
• Compatible with DSC 433MHz wireless systems
• Operating temperature: 4°F – +122°F (20°C – +50°C)

Optex WNX-40DS Wireless PIR Motion Sensor for DSC Support

• WNX-40 Series Manual
• WNX-40 Series Flyer
