Absolute Seco-Larm SL-SA025Q Accessory Timer

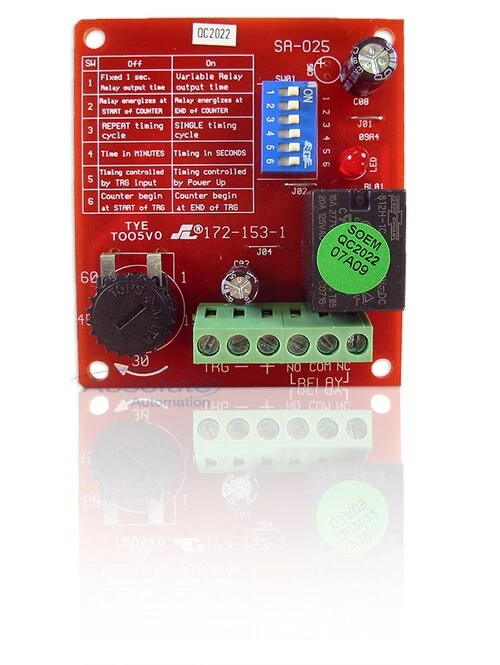

Seco-Larm SL-SA025Q Accessory Timer

This multipurpose timer can be set up in minutes and is completely compatible with all of our driveway alarm accessories. It can be used for a nearly unlimited amount of purposes from having accessories activate at a certain time to using the timer to add a delay to the accessories activation. With the easy to understand dip switches and versatility this timer allows you create the exact driveway alarm response you want! This device may be that last bit of control you’ve been looking for with your home security system.

Seco-Larm SL-SA025Q Accessory Timer Specifications

• Timer can be set from 1 second to 60 minutes
• Can be triggered via a N.O. positive (+) trigger input signal or a N.C. negative (-) trigger device or by powering up the unit
• Relay can be programmed to activate at the start or at the end of the timing cycle
• Relay can also be set to activate for one second at the end of the timing cycle
• Relay can be programmed to pulse (flash) or be steady on
• Built in reset function to manually reset timing cycle
• Form-C relay, contacts rated 8A @ 120VAC/24VDC
• LED indicates relay is energized
• 12VDC124VDC operation (auto sensing)
• Current draw – Less than I mA (standby) or 50mA (relay energized)

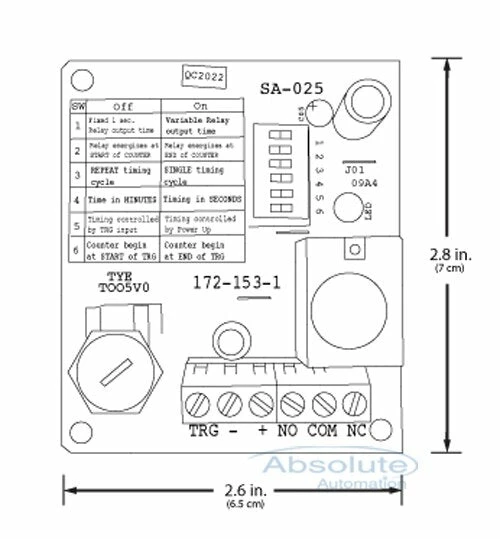

• Board measures 2-718″ x 2-112″ (73 x 63 mm)
• Functions programmed via DIP switches – no jumpers to cut

Accessory Timer Includes

• 1 x Programmable Timer Module

Accessory Timer Support

• Accessory Timer Manual
• Wiring Timer to PSC01OA
