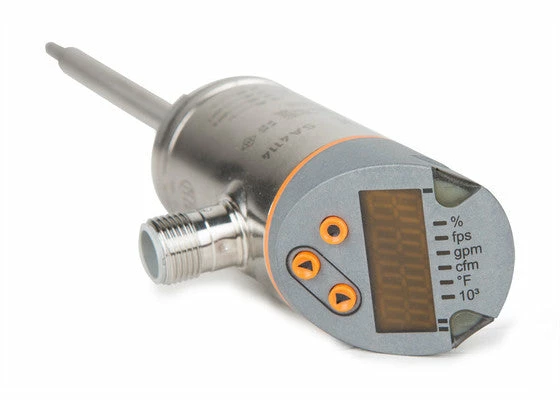

Absolute Sensaphone FGD-0223-4 4-20mA Thermal Flow Meter With Digital Display 4 In Probe

Sensaphone FGD-0223-1 4-20mA Flow Meter with Digital Display and 4″ Probe for 3.5 to 10 inch Pipe

The Sensaphone FGD-0223-4 measures real time temperature and flow rates.  The flow rate can be reported to any Sensaphone monitoring system that supports 4-20mA sensors.  Supports water, oil, glycol or air.

The sensor also measures temperature and displays it on the built in digital display.  Temperature is not transmitted.

This version has a 4″ probe for pipes from 3.5 inch to 10 inches.

Note:  A 24VDC power supply is required and NOT included.   See part# FGD-0070 or FGD-0071 or equivalent.



FGD-0223-4 Specifications:

• Monitors flow and temperature
• Analog 4-20mA output
• Requires 18-30 VDC power
• Supports water, glycol, air, oils
• Probe length 4″ for 3.5″ to 10″ pipe
• Liquid Flow measuring range:  .15 to 9.85 ft/s
• Gas flow measuring range: 6 to 328 ft/s
• Operating temp range: -40 to 176F
• Fitting 1/2″ NPT



• Datasheet Tech Specs
