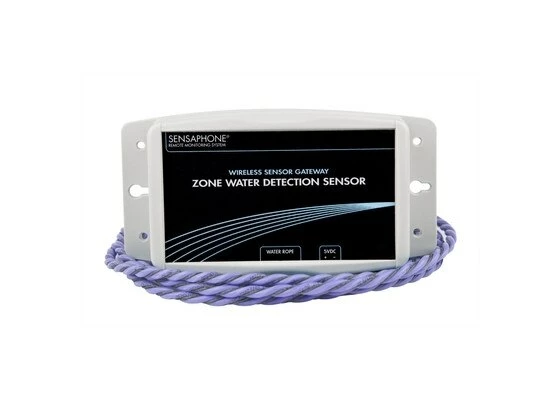

Absolute Sensaphone FGD-WSG30-ZONE WSG Wireless Water Rope Zone Sensor

Sensaphone FGD-WSG30-ZONE Zone Water Leak Sensor

The WSG30 Wireless Zone Water Detection Sensor is designed to work with the Sensaphone WSG30. This sensor includes a built-in radio transmitter and ten feet of water sensing cable for monitoring for the presence of water in a particular area. The size of the monitored area can be extended by attaching additional lengths of Water Rope (FGD-0063) to the end of the included Water Rope. You can connect up to ten lengths of Water Rope (100FT) to one Zone Water Detector. The sensor comes with three AA alkaline batteries which will power the sensor for up to two years.

Sensaphone WSG30 Zone Water Leak Sensor Specifications

• Operating Temperature Range: 32° to 122°F (0° to 50°C)
• Operating Humidity Range: 095%
• Transmit Power Output: 100mW (20dBm)
• Range: Up to 300FT (90m)
• Power Requirements: (3) AA Batteries / 5VDC Power Supply (Router Mode)
• Wireless Technology: ISM 2.4GHz, 100 mW (20dBm)
• Housing: White plastic
• Size: 6.8 x 3.5 x 1.5 (17.2cm x 8.9cm x 3.8cm)

Sensaphone WSG30 Zone Water Leak Sensor Includes

• 1 x Sensaphone WSG Wireless Zone Water Sensor
• 3 x AA Alkaline Batteries
• 1 x 10 Foot Length of Water Sensing Rope
• 5 x Adhesive Cable Clamps
• 1 x Mounting Kit

Sensaphone WSG30 Zone Water Leak Sensor Support and Downloads

• WSG Zone Water Sensor Manual
• WSG-30 Cut Sheet
