Absolute Sensaphone Toroidal Conductivity 100MS

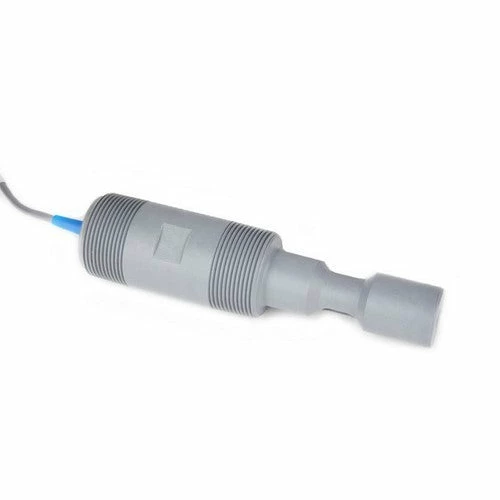

The Sensaphone Toroidal Conductivity Sensors are used in processes where conventional contacting sensors may become fouled or corroded. These probes are unique in the marketplace.



They are loop-powered and provide direct 4-20 mA output. Each sensor comes standard with a Pt100 RTD temperature device, which provides automatic temperature compensation to 25°C (77°F).



These sensors are equipped with 1.5″ MNPT threads on both ends so that they can be mounted for in-flow applications or submersion mounted in tanks or open vessels.



Product Features:

• Available to measure 0-10mS/cm, 0-100mS/cm, or 0-1,000mS/cm
• Each sensor comes standard with a Pt100 RTD temperature device
• Equipped with 1.5″ MNPT threads on both ends



Product Specifications:

• Sensor Cable: 20 ft (6 m)
• Process Connection: 1.5″ MNPT at both ends of the sensor for submersion or in-line
• Load: 600 max at 24 VDC
• Maximum Flow Rate: 10 ft (3 m)/sec
• Pressure/Temperature Limits: 50 psi at 40°C
• Power: 24 VDC
• Temperature Compensation: Pt 100 RTD
• Operating Temperature Range: -10 to 60°C
• Notes: Requires a 24VDC power supply (FGD-0070)
